Custom ITO Fused Silica Windows & Plates

Custom Optic Enquiry

Looking for online stock? We sell that too

UQG Optics ITO coated indium tin oxide is vacuum deposited on one side on the Fused Silica substrate which is a highly conductive transparent coating.

When the ITO coating has been exposed to thermal cycling and salt spray it has shown no reduction in optical performance or damage to the ITO coating.

The transmission will peak to 87% @ 525-600nm wave range on 20 ohm/sq coating. For higher transmission the ITO can be index matched with multilayer AR coatings.

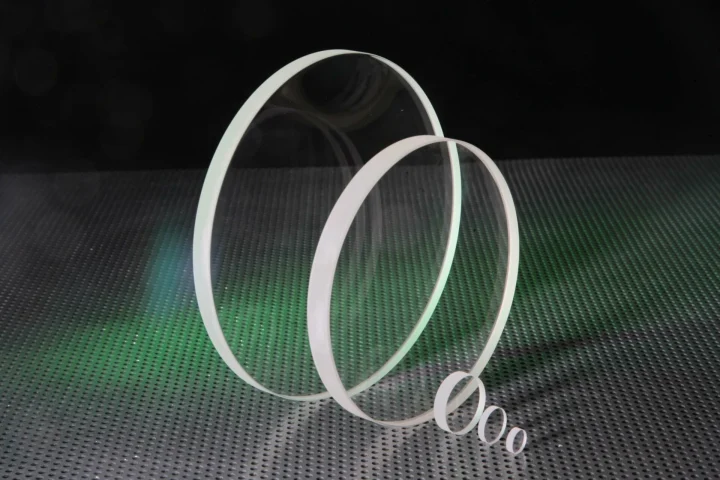

The Fused Silica windows & plates can be supplied ITO coated up to 1 metre square in a range of sheet resistance from 2.50 to 1500 ohm/sq. Used in science and industry for many applications.

Please contact our sales team, or view all our Fused Silica Windows.

Read more

Custom Options

Dimensions: Diameters 5mm to 150mm

Squares/Rectangles 1mm x 1mm to 150mm x 150mm

Thickness Range: 0.1mm to 6mm

Coating Options: Additional standard resistivity's. AR coatings & cold ITO coatings in larger sizes

Material Options: Corning HPFS 7980, KrF & ArF grade, commercial grade UV Silica & Heraeus Spectrosil 2000^®

View RoHS Statement

Related Materials

ITO Coated Fused Silica

UV Fused Silica is optically pure and has good thermal properties. This is a benefit when using for an optical window for precise applications and demanding environment. UV Fused Silica is...

File

Find out more

Browse all materials

Ordering 10+ units?

Choose 'QUOTE' below for discount pricing on stock parts starting at 10+ volume/OEM quantities
