Custom AR Coated White Float Glass - Windows, Plates & Sheets

Custom & OEM Optic Enquiry

Looking for online stock? We sell that too

Precision AR Coated Sheet Glass

AR coated low iron precision sheet glasses are AR coated by magnetron deposition systems.  AR coating is added to low iron clear glass sheet to offer high durability and long lifetime.

The large sheets are all pre-coated ready to process and available in an extension range of thicknesses.

The material has excellent flatness and offer a economical option to optically polished & optically coated parts. Easy to clean & abrasion resistant to ISO standards, the transmission will offer up to ≥ 98% in the visible range.

Please contact our sales team.

Read more

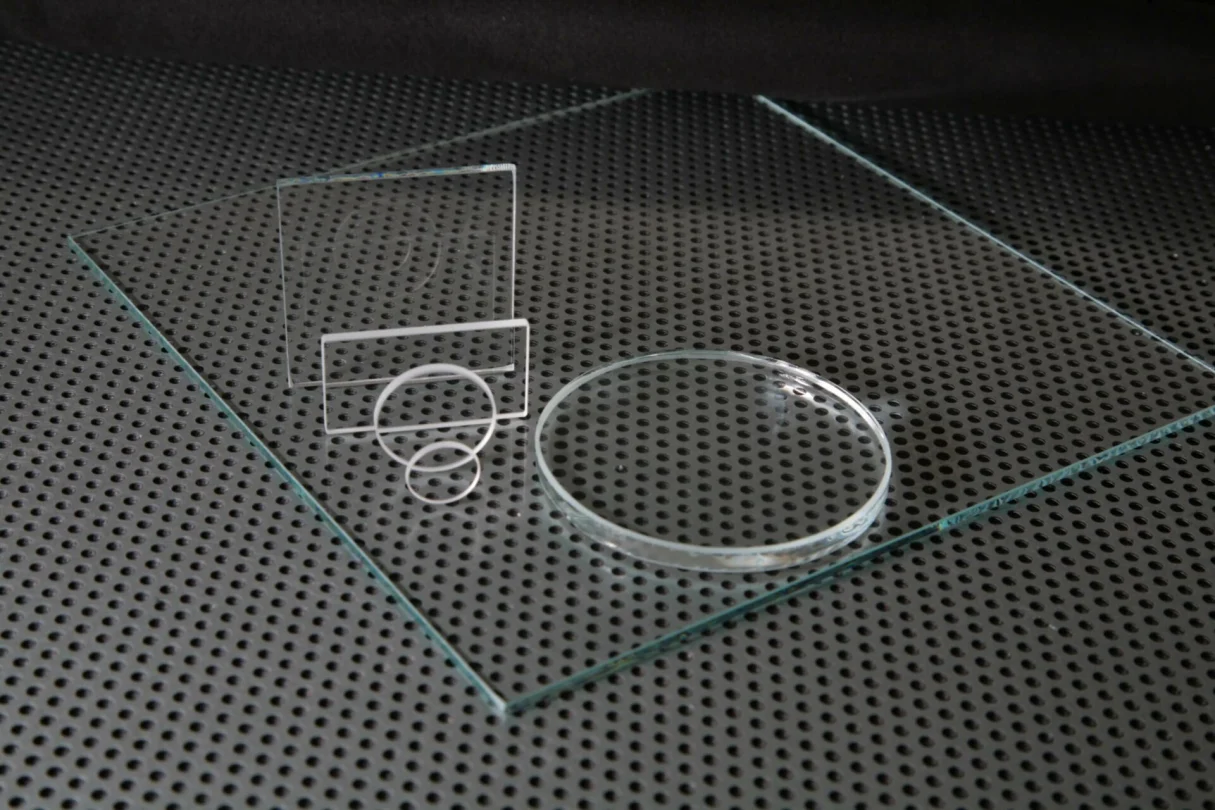

AR Coated Glass Standard Windows Plates Sheets Custom

Custom Options

Materials: Cleartec AR White Float - Low iron

Both sides AR 380-780nm

Single side AR 380-780nm

Blue tint

Green tint (2.75mm & 2mm thick)

Dimensions: Diameters 5mm to 600mm

Squares/Rectangles 1mm x 1mm to 885mm x 610mm

Thickness Range: AR Both sides - 1mm, 1.60mm, 2mm, 3mm, 3.2mm, 4mm, 5mm, 6mm, 8mm, 10mm & 12mm thick

AR One side - 1.10mm, 2mm, 3mm & 4mm thick

Edges: Polished, ground, bevelled, chamfered & as cut

Options: Toughened, laminated, blanks/cut pieces, shapes, holes, screen printing bevelled angles & corners

Online Stock

Ordering 10+ units? Choose 'QUOTE' below for discount pricing on stock parts starting at 10+ volume/OEM quantities

Material: CLEARTEC - AR Coated Sheet White Float (Low Iron)

Diameter Tolerance: +0.00/-0.20mm Ground edges & chamfered 25mm dia & below

+0.10/-0.30 As cut & chamfered over 25mm dia

Squares Tolerance: ± 0.20mm

Edge Finish: Below 25mm ground & chamfered

Over 25mm dia as cut & chamfered

Plates as cut/chamfered

Thickness Tolerance: + 00/-0.20mm

Surface Quality: 60/40 Scratch/Dig

Surface Flatness: 1-2 Fringes per 25mm dia (@633nm)

Transmission Range: AR/AR >98% avg 380-780nm

Coatings: One side & both sides, Precision magnetron coated & refection colour neutral blue

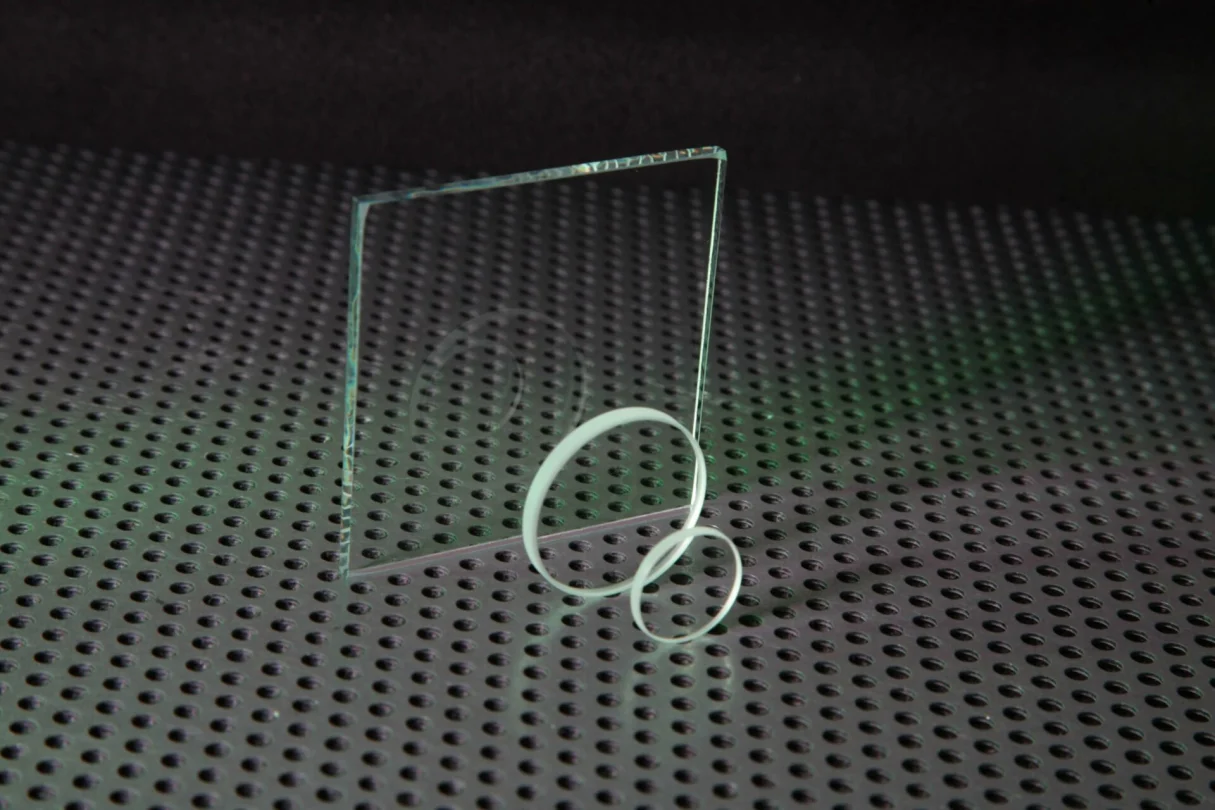

AR Coated Glass Standard Windows Plates Sheets

AR VIS Both Sides

AR Coated White Float – 2mm ThickDatasheets AR Coated White Float – 3mm ThickDatasheets
AR VIS Both Sides Part No.
Dimensions (mm)
Thickness (mm)
Unit Price (1-10) Excl. VAT
Buy (1-10)
Quote Request (10+)
WAS-102
Dimensions (mm)Ø 10
Thickness (mm)2
Unit Price (1-10) Excl. VAT: £17.00
WAS-103
Dimensions (mm)Ø 10
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £18.00
WAS-152
Dimensions (mm)Ø 15
Thickness (mm)2
Unit Price (1-10) Excl. VAT: £12.50
WAS-153
Dimensions (mm)Ø 15
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £18.25
WAS-202
Dimensions (mm)Ø 20
Thickness (mm)2
Unit Price (1-10) Excl. VAT: £15.05
WAS-203
Dimensions (mm)Ø 20
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £18.50
WAS-252
Dimensions (mm)Ø 25
Thickness (mm)2
Unit Price (1-10) Excl. VAT: £10.75
WAS-253
Dimensions (mm)Ø 25
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £9.75
WAS-254
Dimensions (mm)Ø 25
Thickness (mm)4
Unit Price (1-10) Excl. VAT: £18.00
WAS-256
Dimensions (mm)Ø 25
Thickness (mm)6
Unit Price (1-10) Excl. VAT: £27.60
WAS-303
Dimensions (mm)Ø 30
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £15.80
WAS-403
Dimensions (mm)Ø 40
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £18.00
WAS-502
Dimensions (mm)Ø 50
Thickness (mm)2
Unit Price (1-10) Excl. VAT: £19.25
WAS-503
Dimensions (mm)Ø 50
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £11.00
WAS-504
Dimensions (mm)Ø 50
Thickness (mm)4
Unit Price (1-10) Excl. VAT: £15.20
WAS-603
Dimensions (mm)Ø 60
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £21.80
WAS-752
Dimensions (mm)Ø 75
Thickness (mm)2
Unit Price (1-10) Excl. VAT: £37.50
WAS-753
Dimensions (mm)Ø 75
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £39.50
WAS-1003
Dimensions (mm)Ø 100
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £26.40
WAS-1503
Dimensions (mm)Ø 150
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £63.00
WAS-2523
Dimensions (mm)25 x 25
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £10.50
WAS-5052
Dimensions (mm)50 x 50
Thickness (mm)2
Unit Price (1-10) Excl. VAT: £14.50
WAS-5053
Dimensions (mm)50 x 50
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £12.20
WAS-1012
Dimensions (mm)100 x 100
Thickness (mm)2
Unit Price (1-10) Excl. VAT: £27.00
WAS-1013
Dimensions (mm)100 x 100
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £17.00
WAS-1513
Dimensions (mm)150 x 150
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £42.60
WAS-2023
Dimensions (mm)200 x 200
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £65.20
WAS-3033
Dimensions (mm)300 x 300
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £97.00

AR VIS One Side - Standard

Material Datasheets & Technical Information AR Coated Glass Standard – AR VIS-One SideDatasheets
AR VIS One Side - Standard Part No.
Dimensions (mm)
Thickness (mm)
Unit Price (1-10) Excl. VAT
Buy (1-10)
Quote Request (10+)
WAS-2531
Dimensions (mm)Ø 25
Thickness (mm)3
Unit Price (1-10) Excl. VAT: £8.00

Material Datasheets

AR Coated Glass Standard – AR VIS-One Side

ClearTec AR Coated Glass Standard AR VIS-One Side is a high-quality glass produced using a precision gel dipping process on one side of white float (low iron) glass. This material...

Find out more

Resources:

AR Coated Glass Standard – AR VIS-One Side Datasheet
AR Coated White Float – 2mm Thick

2mm AR Coated White Float Glass is a high-quality optical material that has been coated with an anti-reflective (AR) coating. The AR coating reduces surface reflections and improves light transmission,...

Find out more

Resources:

AR Coated White Float – 2mm Thick Datasheet
AR Coated White Float – 3mm Thick

3mm Precision AR Coated Glass is a high-quality optical material that has been coated with an anti-reflective (AR) coating. The AR coating reduces surface reflections and improves light transmission, making...

Find out more

Resources:

AR Coated White Float – 3mm Thick Datasheet
