Custom UV Fused Silica Windows AR Coated - AR-VIS, NIR-IR, UV & VIS-NIR
Looking for online stock? We sell that too

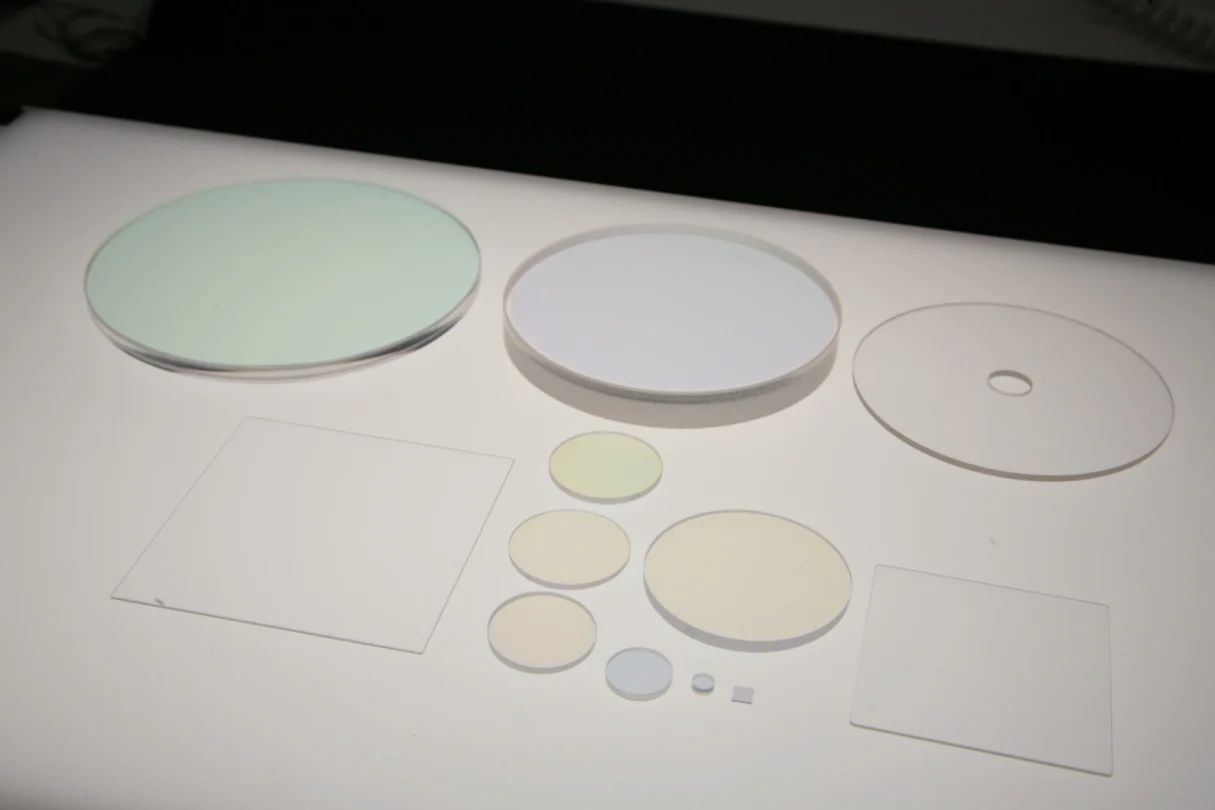

UQG supply UV Fused Silica windows and plates AR coated from a stock range or custom coated to your design. UV Fused Silica is very pure material and an uncoated surface has 92% average transmission from 180nm to 2 microns.
Adding AR coatings can reduce the reflection to less than 0.2% with transmission over 99%. The AR coatings range from the UV (ultraviolet), VIS (visible) and IR (infrared). Either broadband or single wavelengths coated for high laser damage thresholds or for camera windows for perfect imaging.
The UV Fused Silica windows and plates are made to custom specifications of flatness, surface finish and AR coatings. The stock AR coated range includes broadband AR coatings for wavelengths in the UV, VIS-NIR & NIR-IR regions. AR-VIS range, prices on request.
Please contact our sales team, or view all our Fused Silica Windows.
Related Materials
UV fused silica AR multilayer coated both sides to re reduce reflections and improve transmission for 400nm-1100nm. The surfaces will reflect approx 4% per side uncoated, so this coating will...
UV fused silica AR multilayer coated both sides to re reduce reflections and improve transmission for 400nm-1100nm. The surfaces will reflect approx 4% per side uncoated, so this coating will...
UV fused silica AR multilayer coated both sides to re reduce reflections and improve transmission for 400nm-1100nm. The surfaces will reflect approx 4% per side uncoated, so this coating will...
UV fused silica AR multilayer coated both sides to reduce reflections and improve transmission for the UV range 248nm-400nm. The surfaces will reflect approx 4% per side uncoated, so this...
UV fused silica AR multilayer coated both sides to reduce reflections and improve transmission for the UV range 248nm-400nm. The surfaces will reflect approx 4% per side uncoated, so this...
UV fused silica AR multilayer coated both sides to reduce reflections and improve transmission for the UV range 248nm-400nm. The surfaces will reflect approx 4% per side uncoated, so this...
Ordering 10+ units?
Choose 'QUOTE' below for discount pricing on stock parts starting at 10+ volume/OEM quantities
Available Stock
Material: UV Fused Silica windows Spectrosil 2000 ® AR Coated
Dimension Tolerance: +0.00/-0.20mm 5mm dia +/- 0.10mm
Thickness Tolerance: ±0.10mm
Edge Finish: Fine ground
Surface Quality: 40/20 Scratch/Dig
Surface Flatness: 1-2 Fringes (@633nm) per 25mm dia
Parallelism: ≤ 3 Arc mins
AR Coatings: AR-VIS 400-700nm AR Coated both sides R<0.50%
NIR-IR 700nm-1600nm AR Coated both sides R<1%
UV-AR 248nm-400nm AR Coated both sides R<1%
VIS-NIR AR 400nm-1100nm AR Coated both sides R<1%
AR NIR/IR 700nm -1600nm
AR-VIS 400nm - 700nm
UV-AR 248nm-400nm
VIS-NIR AR 400nm-1100nm
